• High Speed Fully Automatic 2 Track T-shirt Bag Making Machine AP-800HT / AP-1000HT

High Speed Fully Automatic 2 Track T-shirt Bag Making Machine
AP-800HT / AP-1000HT
  • Operating in fully automatic system.
  • The machine including inverter motor driven system in unwind unit.
  • E.P.C. control for double lines.
  • Folding unit for finish products.
  • Servo driven system for 2 track production.
  • Equipped with multi automatic alarm and automatic stop design.
  • Rocking system avoid the 2 pieces of bags sealing stick together.
Model AP - 800HT AP - 1000HT AP - 800MT AP - 1000MT AP - 800LT AP - 1000LT
Bag Width (mm) 350 x 2 450 x 2 350 x 2 450 x 2 350 x 2 450 x 2
Bag Length (mm) 700 900 700 900 700 900
Max. ProductionSpeed
( cycles / min )		 300 300 250 250 200 200
Thickness of Film( mm ) 0.008 ~ 0.035 0.008 ~ 0.035 0.008 ~ 0.035 0.008 ~ 0.035 0.008 ~ 0.035 0.008 ~ 0.035
Heater( kw ) 3.5 3.5 3.5 3.5 3.5 3.5
Power Requires( kw ) 6.6 7.6 6.6 7.6 6.6 7.6
Machine Length (m) 6.7 6.8 6.7 6.8 6.7 6.8
Machine Width (m) 1.5 1.7 1.5 1.7 1.5 1.7
Machine Hight(m) 1.3 1.3 1.3 1.3 1.3 1.3
Machine Weight (kg) 2500 3000 2500 3000 2500 3000
Gross Weight (kg) 3300 3800 3300 3800 3300 3800
Air Compressor
(not included)(hp)		 10 10 7 7 7 7

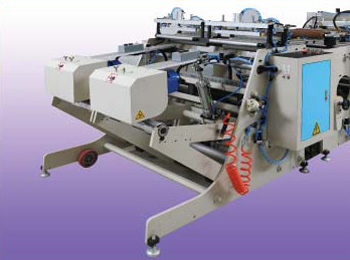

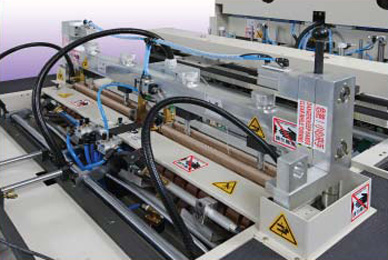

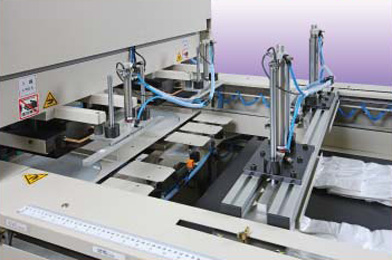

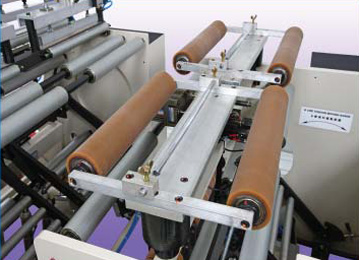

Please Click Image to Enlarge
