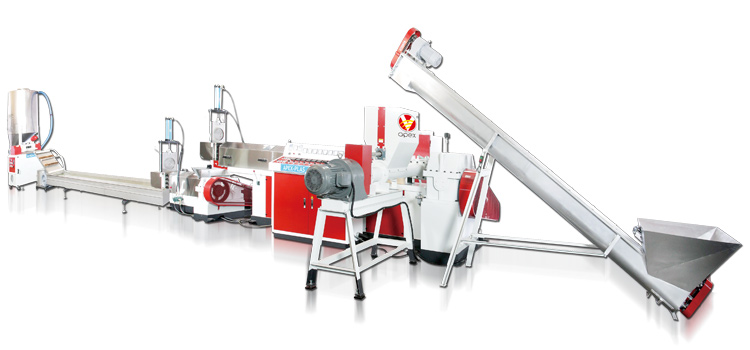

The machine is specially for various PP, PU, PE, PS, ABS & NYLON waste process. After crushing and granulating, those re-processed & reclaimed waste material are as ready for new material use.

Model	AP-85SP-H	AP-100SP-H	AP-120SP-H	AP-150SP-H
1st Extruder
Extruding cap.	100-180 kgs/hr	200-280 kgs/hr	300-380 kgs/hr	350-500 kgs/hr
Screw dia.	85 mm	100 mm	120 mm	150 mm
Screw L/D ratio	36:1	36:1	36:1	36:1
Driving power	40 HP	60 HP	75 HP	100 HP
Heating zone	5	7	9	11
Heating cap.	36 Kw	40 Kw	60 Kw	100 Kw
Speed control style	Two step	Two step	Two step	Two step
Forced feed power	3 HP'vs	3 HP'vs	5 HP'vs	5-1/2 HP'vs
Hyd. net changing power	3 HP	3 HP	3 HP	5 HP
2nd Extruder
Screw dia.	90 mm	105 mm	125 mm	155 mm
Screw L/D ratio	12:1	12:1	12:1	12:1
Driving power	10 HP'vs	20 HP'vs	25 HP'vs	30 HP'vs
Heating cap.	10 kw	14 kw	20 kw	24 kw
Cooling Water Tunnel	Stainless steel	Stainless steel	Stainless steel	Stainless steel
Pellet cutting m/c	－	－	－	－
Driving power	2 HP'vs	3 HP'vs	5 HP'vs	7-1/2 HP'vs
M/C Weight	2600 kgs	3200 kgs	4500 kgs	6300 kgs
Packing(approx.)	10 m	15 m	18 m	24 m

Please Click Image to Enlarge
