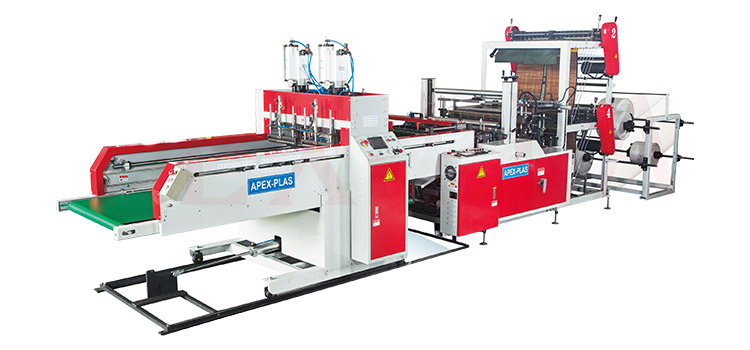

高速全自動雙線背心袋/底封袋製袋機 AP-700B4P
型號 AP-700B4P AP-800B4P AP-1000B4P
Big Size For Flnt(Max.) 1×2×680×1200
2×2×305×1200		 1×2×780×1200
2×2×355×1200		 1×2×980×1200
2×2×455×1200
Big Size For T-Shirt(Max.) 2×2×305×650 2×2×355×650 2×2×455×650
Thickness of film 0.008-0.15 0.008-0.15 0.008-0.15
Mnx.Punch Size of Block Bag 2×305×650×20 2×355×650×20 2×455×650×20
Capncity 30-160×4 30-160×4 30-150×4
Main Molor Servo Motor AC 1HP 4P/
AC2.9KW		 AC 1HP 4P/
AC2.9KW		 AC 1HP 4P/
AC4.4KW
Feed Motor DC 500W×4 DC 500W×4 DC 500W×4
Hcaler 1800W×2 2200W×2 2400W×2
Power Required 8.5 KW 9.0 KW 10.4 KW
Air supply required/minute 0.5Mpa 300ml 0.5Mpa 350ml 0.5Mpa 400ml
Machine Size
(L×W×H)(m)		 Main Machine 4.25×1.55×1.99
Punch Machine 3.00×1.20×1.50		 Main Machine 4.25×1.65×1.99
Punch Machine 3.00×1.30×1.50		 Main Machine 4.25×1.85×1.99
Punch Machine 3.00×1.50×1.50
Packing Size
(L×W×H)(m)		 Main Machine 3.10×1.65×2.20
Punch Machine 3.20×1.40×1.70		 Main Machine 3.10×1.75×2.20
Punch Machine 3.20×1.50×1.70		 Main Machine 3.10×1.95×2.20
Punch Machine 3.20×1.70×1.70
N.W/G.W
(L×W×H)(m)		 Main Machine 1250/1550
Punch Machine 1050/1350		 Main Machine 1350/1700
Punch Machine 1150/1500		 Main Machine 1550/1950
Punch Machine 1350/1750

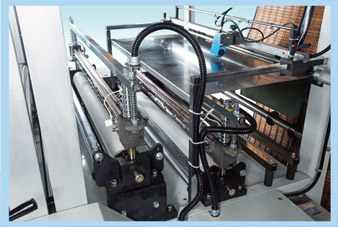

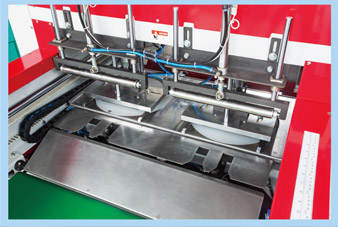

( 請點擊圖片放大 )
